WALMARK SUPPLIES PARTS TO FIT YOUR VALCO MELTON & NORDSON EQUIPMENT.

​PARTS & EQUIPMENT

HOT MELT SYSTEMS

Walmark is a direct partner of Valco Melton and is proud to offer their industry leading adhesive equipment and parts. From packaging to converting, we have experience in all areas of adhesive applications.
TO ORDER, CALL US AT 800-682-0479

​HOT MELT HOSES

Engineered for Durability and Longevity

As a world leader in adhesive application engineering, Valco Melton is able to offer a larger range of hot melt hoses with improved market standard adaptability. Valco Melton hoses are the ideal solution for quality hot melt transport and optimal benefits.


  • Industry standard compatible
  • Flexible
  • Interchangeable
  • Versatile & dependable for all applications
  • Proven design & quality guaranteed
  • Long lasting design to remain "char" free
  • "Nomex" and Flex Foam insulation for the best insulation and temperature stability in the industry
CHARACTERISTICS
TECH SPECS
CHARACTERISTICS
  • Valco Melton manufactures hot melt hoses using top of the line market components that are 100% mechanically and electronically interchangeable
  • Hot Melt Hoses are temperature sensored by Ni-120 or PT-100 RTD
  • Accessories include brackets, fittings, hose protectors, corrugated and braided covers
  • Valco Melton hoses are CE certified
TECH SPECS

TECHNICAL SPECIFICATIONS

MAXIMUM WORKING TEMPERATURE 220°C220°C
220°C
220°C
INTERNAL DIAMETER (mm)
ø8ø13ø16ø20
MAXIMUM WORKING PRESSURE (bar)10010010080
POWER CONSUMPTION (W/m)150175195200
 RTDPT-100/ NI-120/ NTC 1000/ FEKO
PT-100/ NI-120/ NTC 1000/ FEKO
PT-100/ NI-120/ NTC 1000/ FEKO
 PT-100/ NI-120/ NTC 1000/ FEKO
MINIMUM CURVATURE RADIUS (180°)160 mm160 mm
160 mm
160 mm
VOLTAGE
200 - 240 VAC
200 - 240 VAC
200 - 240 VAC
200 - 240 VAC
CONTACT US

​STANDARD COMPATIBLE HOSES

HOSE CORE SIZETUBE SIZEJIC THREAD
#4
1/4 in7/16-20
#63/8 in9/16-18
#81/2 in3/4-16
#105/8 in7/8-14
#123/4 in1 1/16-12

The standard hoses used with all Valco Melton equipment are compatible with Nordson 2300/3000 Series, Problue and Durablue. All Valco Melton hoses are built using the best materials available. Each hose is wound with Nomex insulation providing the best insulation and energy efficient performance. All standard hoses use a 3/8" ID core with high flex capability.


There are several types of hoses available. The washdown hoses use a different connection on the applicator end of the hose. These hoses must be used with washdown applicators. The Swirl/Spray hoses are similar to the standard hose but house an internally wound air line that heats the air used in swirl applications. The tubing protrudes through both ends of the hose. Typically the tubbing on the unit end is connected to an air regulator and the tubing on the applicator end is connected to either a swirl handgun or automatic applicator.

CONTACT US

​HOT MELT MODULAR GUNS

MS SERIES

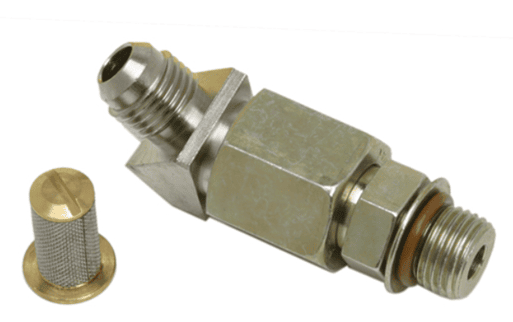

The new Valco Melton MS Series offers precise and flexible control for a variety of dispensing applications, ensuring optimal uniformity and quality. The MS Series features and industry standard compatible platform, easy-to-access heaters and RTD's, as well as multiple fluid port locations. All MS gun manifolds utilize high quality components and universal mounting brackets for easy configuration into any installation. The MS Series is available in both standard and washdown cordset options and are adaptable to any in-line filter assembly. The MS Series also uses an exclusive and unique single and multi-modular design for greater flexibility and faster delivery times.

KEY HIGHLIGHTS
MS STANDARD BEAD
MS CVO and CVR
MS CH20 and High Flow
MS L20 and Multi-Line
DIMENSIONS
TECH SPECS
KEY HIGHLIGHTS

GET THESE IMMEDIATE BENEFITS

  • 100% Compatibility with other industry standard spare parts
  • Improve production levels with high performance
  • Flexible to your work requirements
  • Durable design
  • Manufactured and quality tested for reliability and accurate adhesives placement
  • Choose from the largest variety of compatible modules and nozzles in the industry to fit your exact needs
  • CE Certified

MS STANDARD BEAD

MS STANDARD BEAD

These are the standard nozzles used on all MS, ME and LP style guns. They are also fit for Nordson Classic Blue, H-200, Solid Blue and ME modules. the Valco Melton nozzles are machined from a brass body and have a stainless insert. The inserts are formed from medical grade polished capillary tube which provides the highest quality channel from which the adhesive can be extruded. These nozzles will provide a straight, consistent, and accurate adhesive bead.

MS CVO and CVR

MS CVO and CVR

MS CH20 and High Flow

MS CHO and High Flow

MS L20 and Multi-Line

MS L20 and Multi-Line

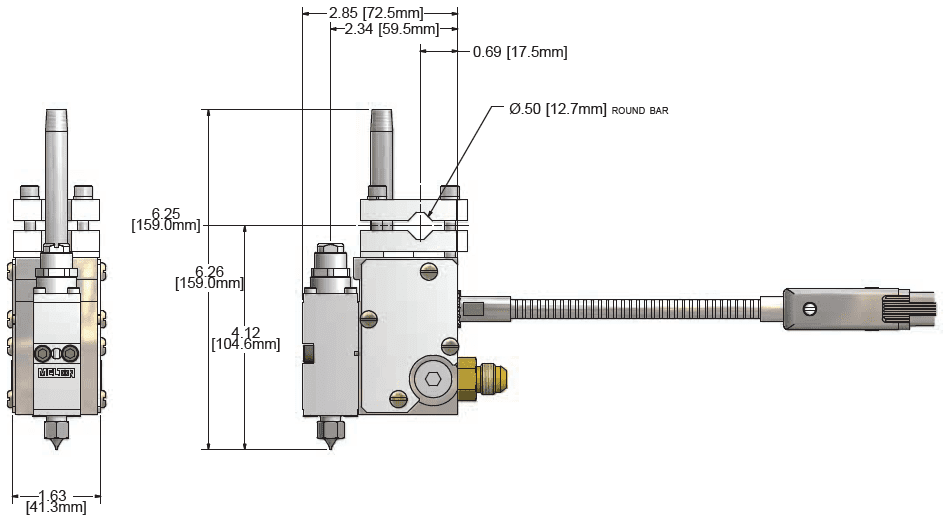

DIMENSIONS
TECH SPECS

MS SERIES TECHNICAL SPECIFICATIONS

MAXIMUM HYDRAULIC PRESSURE 100 bar
MAXIMUM TEMPERATURE
240°C
TEMPERATURE SENSOR Ni120, PT 100, FEKO, NTC
PNEUMATIC PRESSURE4 - 6 bar
OPENING SYSTEMAOSC
MAX CYCLE RATE2400 cycles/min
CONTACT US

​SINGLE ORIFICE H200 NOZZLES

NOZZLES

These are the standard nozzles used on all MS, ME and LP style guns. They are also fit for Nordson Classic Blue, H-200, Solid Blue and ME modules. the Valco Melton nozzles are machined from a brass body and have a stainless insert. The inserts are formed from medical grade polished capillary tube which provides the highest quality channel from which the adhesive can be extruded. These nozzles will provide a straight, consistent, an accurate adhesive bead.

CONTACT US

​GEAR PUMP HOT MELT UNITS

For ease-of-use, a unified operator interface is used across the entire range.

D SERIES - D4, D10, & D16 MELTERS

Valco Melton’s D4, D10 and D16 Series Units are ideal for packaging, graphic/print finishing, product assembly, labeling and various paper converting applications. All D Series units feature an LED display, spur gear pump with fixed or variable speed, “key-to-line” control, and a multi-functional control system. Other options include an integrated glue pattern control, line speed pressure control and integrated auto-feed systems.

BENEFITS
PID CONTROLS
PID FEATURES
TEFLON COATING
6 OUTPUT MANIFOLD
CONNECTIONS
TECH SPECS
BENEFITS

GET THESE IMMEDIATE BENEFITS

  • Efficient and clean operation featuring Teflon® coated tank with demand melt heating grid
  • Achieve uniform output pressure to match line speed with built-in pressure run-up control.
  • Reduce dynamic seals and wear-components with the all electric gear pump and motor.
  • Easy-to-connect HMI communication through the melter interface I/O's.

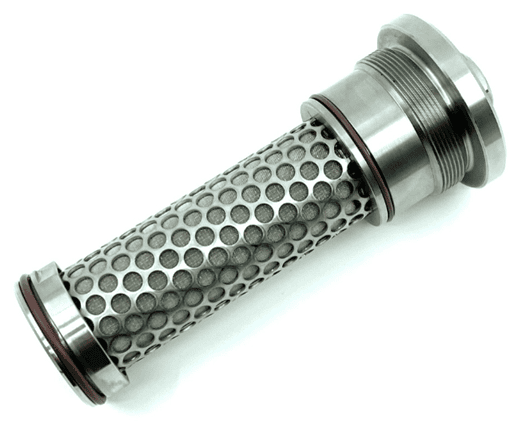

  • Avoid compatibility problems with Valco Melton's industry standard hoses, guns and tank filters.
  • Complies with major approval codes worldwide.
PID CONTROLS

D10 and D16 Units feature an optional integrated pattern control, capable of 6 outputs and 4 inputs along with line speed tracking. PID Controls provide precise RTD temperature sensing that optimize power usage and system performance.

PID FEATURES

Eliminate complicated programming tasks with the user-friendly, multi-functional PID controller, which allows operators to quickly configure system parameters and monitor operation.

D4, D10, & D16 SERIES MULTI-FUNCTIONAL PID CONTROLLER FEATURES:

  • Multi-language display
  • Programmable sequential zone start-up
  • Automatic temperature setback
  • High/low temperature protection
  • Fahrenheit or Celsius option
  • System diagnostics
  • Ethernet IP temperature control interface
  • Seven-day programmable clock
  • Digital RPM readout
  • Optional Low-level detection in tank
  • Optional variable-speed motor control
TEFLON COATING

Maximize melt rate and efficiency using the Teflon® coated tank with custom fin design.

6 OUTPUT MANIFOLD

D10 and D16 units feature easier cleaning and maintenance with a 6 output manifold and integrated tank shutoff.

CONNECTIONS

D10 and D16 units offer connections for 2,4, or 6 hoses and guns for optimal flexibility. D4 units offer connections for up to 4 hose and guns.

TECH SPECS

TECHNICAL SPECIFICATIONS

D4D10D16
 Gun Attachments
 2 or 42, 4, or 62, 4, or 6
Tank Capacity 8.82 lb (4 kg) 24 lb (11 kg) 35 lb (16 kg)
 Melt Rate* 11.1 lbs/hr (5 kg/hr)51 lbs/hr (23 kg/hr)78 lbs/hr (35 kg/h
 Pump Motor-driven spur gear pump/ Fixed or Variable Speed  Motor-driven spur gear pump/ Fixed or Variable Speed  Motor-driven spur gear pump/ Fixed or Variable Speed
Pump Rate 60 lb (27 kg)/hr60 lb (27 kg)/hr 120 lb (54 kg)/hr
Temp Range
 86° - 446°F
(30° - 203°C)
  86° - 446°F
(30° - 203°C
  86° - 446°F
(30° - 203°C
Temp Stability 1°F (0.5°C)  1°F (0.5°C)  1°F (0.5°C)
 Electrical 208-240 VAC 1Φ/3Φ, 380 VAC 3Φ, 40 amps  208-240 VAC 1Φ/3Φ, 380 VAC 3Φ, 40 amps  208-240 VAC 1Φ/3Φ, 380 VAC 3Φ, 40 amps
Weight 75 lb (34 kg)109 lb (50 kg)120 lb (54 kg)
Depth 23.9 in (607 mm)25 in (635 mm)25 in (635 mm)
Width 12.3 in (312 mm) 14.25 in (362 mm)14.25 in (362 mm)
 Height 16.7 in (424 mm)21 in (533 mm)25.1 in (636 mm)
CONTACT US

​D SERIES - D10 & D16 MELTERS

Valco Melton’s D10 and D16 Series Units are ideal for packaging, graphic/print finishing, product assembly, labeling and various paper converting applications. The D10 and D16 series melt units feature an LED display, spur gear pump with fixed speed or “key-to-line” control and a multi-functional control system. Other options include an integrated glue pattern control, variable pressure relief and high output pumps.

For ease-of-use, a unified operator interface is used across the entire range of D10 and D16 units.

BENEFITS
PID CONTROLS
PID FEATURES
TEFLON COATING
6 OUTPUT MANIFOLD
CONNECTIONS
TECH SPECS
BENEFITS

GET THESE IMMEDIATE BENEFITS

• Teflon® coated tanks reduce char buildup for easy maintenance and reliable operation
• D-10 and D-16 units can be easily used in fixed speed or key-to-line applications


• Several relief valve options, from the simple single-stage relief valve to more sophisticated pneumatic relief systems


• Spur gear pumps are utilized for positive displacement of adhesive with robust consistency


• Independent control of each heated zone (up to 16) minimizes adhesive degradation and permits precise, uniform patterns


• Cartridge style heaters allow easy change out in the field


• Compliance with major approval codes worldwide


• 100% Compatibility with industry standard hoses, guns, tank filters and drain valves
PID CONTROLS

D10 and D16 Units feature an optional integrated pattern control, capable of 6 outputs and 4 inputs along with line speed tracking. PID Controls provide precise RTD temperature sensing that optimize power usage and system performance.

PID FEATURES

D10 and D16 Units feature an easy-to-use touchpad with a bright LCD display screen to allow operators to quickly setup system parameters and monitor system operation.

D4, D10, & D16 SERIES MULTI-FUNCTIONAL PID CONTROLLER FEATURES:

  • Multi-language display
  • Programmable sequential zone start-up
  • Automatic temperature setback
  • High/low temperature protection
  • Fahrenheit or Celsius option
  • System diagnostics
  • Ethernet IP temperature control interface
  • Seven-day programmable clock
  • Digital RPM readout
  • Optional Low-level detection in tank
  • Optional variable-speed motor control
TEFLON COATING

Teflon® coated tanks with custom fin design maximize melt rate and efficiency.

6 OUTPUT MANIFOLD

6 Output manifold with integrated tank shutoff for ease of cleaning and maintenance.

CONNECTIONS

Outlets for six hoses and guns allows for optimal flexibility.

TECH SPECS

TECHNICAL SPECIFICATIONS

D10D16
 Gun Attachments
2, 4, or 62, 4, or 6
Tank Capacity 24 lb (11 kg) 35 lb (16 kg)
 Melt Rate*51 lbs/hr (23 kg/hr)78 lbs/hr (35 kg/h
 Pump  Motor-driven spur gear pump/ Fixed or Variable Speed  Motor-driven spur gear pump/ Fixed or Variable Speed
Pump Rate60 lb (27 kg)/hr 120 lb (54 kg)/hr
Temp Range
  86° - 446°F
(30° - 203°C
  86° - 446°F
(30° - 203°C
Temp Stability  1°F (0.5°C)  1°F (0.5°C)
 Electrical  208-240 VAC 1Φ/3Φ, 380 VAC 3Φ, 40 amps  208-240 VAC 1Φ/3Φ, 380 VAC 3Φ, 40 amps
Weight109 lb (50 kg)120 lb (54 kg)
Depth25 in (635 mm)25 in (635 mm)
Width 14.25 in (362 mm)14.25 in (362 mm)
 Height21 in (533 mm)25.1 in (636 mm)
CONTACT US

​ADHESIVE MELTER WITH MULTI-FUNCTIONAL CONTROL

For ease-of-use, a unified operator interface is used across the entire range.

EC SERIES - EC4, EC8, EC14, EC30, & EC50

The Evolution C Series technology is the newest innovation for hot melt adhesive melters. The design is a culmination of features that were specifically crafted to meet the most current needs communicated by hot melt unit users worldwide. A new user-friendly control panel supports a quick and easy configuration to adapt to any work requirement. Valco Melton's new EC Series hot melt adhesive unit offers optimum reliability and total control of the unit's operation. Supported by the most current features and technology, the Valco Melton EC Series unit easily takes recognition as the best in its class in performance.
  • High Performance, multi-functional option-filled hot melt application solutions
  • LCD Operator Panel for ease of use and programming
  • Optional Integrated Auto Feed System and Glue Pattern Control
  • Common footprint allows for universal installation
MULTI-FUNCTIONAL CONTROLS
AUTOFEED
RESERVOIR SEAL
COMPONENT ACCESS
PROGRAMMABLE CLOCK
TECH SPECS
DIMENSIONS
MULTI-FUNCTIONAL CONTROLS

EC UNIT MULTI-FUNCTIONAL CONTROLS

  • Separate LED indicator for each zone
  • An alarm system with outputs
  • Direct access button to setback/standby mode
  • Configuration screen with intuitive interface and LED indicator for configuration mode
  • Up to 3 different daily programs for each day of the week
  • New MCP6-P fully-integrated adhesive pattern control included in option
AUTOFEED

Optional, fully-integrated autofeed system increases safety and prevents overfilling.

RESERVOIR SEAL

The lid includes a reservoir seal that reduces contamination and insulates molten adhesive.

COMPONENT ACCESS

NEW lid feature for easy access to electronic components.

PROGRAMMABLE CLOCK

7 day / 3 shift programmable clock.

Reduces setup and increases efficiency.

TECH SPECS

TECHNICAL SPECIFICATIONS

UnitEC 4EC 8EC 14EC 30EC 50
Tank Capacity (lt)4 lt8 lt14 lt30 lt50 lt
Melt Rate (Kg/h)6913, 52035
Pump Compression Rate (Kg/h)1:141:14 / 1:131:131:131:13
Max. Pump Capacity (Kg/h)3535 / 100100100100
Working Temp Range30 - 240°C30 - 240°C30 - 240°C30 - 240°C30 - 240°C
Electrical Connections220 I + T, 220III + T, 380III +N+T
220 I + T, 220III + T, 380III +N+T220 I + T, 220III + T, 380III +N+T 220 I + T, 220III + T, 380III +N+T 220 I + T, 220III + T, 380III +N+T
Working Viscosity (cps)50,000 cps 50,000 cps 50,000 cps 50,000 cps 50,000 cps
Pneumatic Pressure (bar)0.5 - 6 bar 0.5 - 6 bar 0.5 - 6 bar 0.5 - 6 bar 0.5 - 6 bar
Electrical Consumption (W)1800 w2800 w4000 w4000 w4000 w
 Max Channel Power (W)1 -2 Exits3, 4, 5, 6, 7, 8 Exits
 Total Hose + Gun1800 w1450 w
Per Exit (Hose & Gun)1800 w1450 w
Per Channel (Hose & Gun)1800 w1450 w
DIMENSIONS
Dimension (mm) EC 4EC 8EC 14EC 30EC 50
 A532 532 592 782 822 
B 307307 367 558 598 
 C 340340 340 376 526 
D 583658 658 943 943 
CONTACT US

​ECOSTITCH™ GLUING SOLUTIONS

Eco-stitch controls paired with Valco Melton's electric technology is your dream come true! ​Wake up to the opportunity to reduce your adhesive usage up to 50%, while gaining all the benefits of the electric system. ​No-one in the industry does this better!
  • Reduce adhesive usage up to 80%
  • Can adapt and be fitted to your existing gluing systems
  • Eliminate compressed air from system operation
  • Minimize parts changes & downtime
  • Lower pressure + larger orfice = no nozzle plugging
  • Up to 2 billion activation cycles before service is required
  • Minimize angel hair or stringing
EASY INTEGRATION
BETTER BONDS
PNUEMATIC VS ELECTRIC
MX VALVES & APPLICATORS
DRIVERS & PATTERNS
TECH SPECS
FEATURES
EASY INTEGRATION

EASY INTEGRATION OPTIONS

EcoStitch can be added to your existing machine or as a full system.

FULL SYSTEM

CONVERSION

Includes a gear pump melt unit, pattern control with EcoStitch™ technology, and MX electric valves.

OEM SYSTEM

CONVERSION

Includes a gear pump melt unit, valve drivers with EcoStitch™ control (that utilizes existing PLC recipe) and MX electric valves.

EXISTING SYSTEM
GUN CONVERSION
Utilizes existing melt unit, includes valve drivers with EcoStitch™ control (that utilizes existing PLC recipe) and MX electric valves.
BETTER BONDS

BETTER BONDS, LESS ADHESIVE & WHY THIS WORKS!

The bonding surface area of the dots provide more adhesion and coverage per square mm of adhesive placed.

MORE ECOSTITCH CASE & CARTON SEALING APPLICATIONS

Whether on carton stock or corrugated, the EcoStitch bond provides a cleaner, stronger and more flexible bond than traditional beads.

PNUEMATIC VS ELECTRIC

WHY ECOSTITCH ALL-ELECTRIC SYSTEMS LAST LONGER THAN PNEUMATIC

By eliminating dynamic seals and compressed air from system operation, you minimize your chance of valve failure, the cost to replace spare parts and the downtime associated with it.

ELECTRIC VS PNEUMATIC SYSTEMS
• Eliminates plant air
• ​Fewer parts
• Fewer dynamic seals
• ​Longer parts life
• Cleaner running
• More consistent pump pressure


This graphic demonstrates how the dynamic (Red) seals show potential for wear and replacement. Valco Electric systems almost eliminate these points of failure, saving you money and keeping your production running!
MX VALVES & APPLICATORS

ALL-ELECTRIC ADHESIVE DISPENSING VALVE FEATURING ECOSTITCH TECHNOLOGY

Valco Melton's MX electric hot melt valve is the workhorse for most Valco Melton hot melt dispensing solutions. The MX electric valve can operate at extremely high speeds reaching 15,000 cycles per minute for short bursts and have a lifetime capable or more than 2 billion cycles depending on operating conditions. The MX electric valve is used for many different applications including Packaging, Folding Carton, Sift Proof Packaging and Slot Coat applications. The MX is widely known as the EcoStitch capable valve in Food and Beverage packaging where end users see their adhesive usage reduced by up to 75% for instant ROI and process improvement.

DRIVERS & PATTERNS

ECOSTITCH DRIVERS AND PATTERN CONTROLS

Valco Melton's Pattern Controls provide a customized signal that fires the EcoStitch MX Valve.


VD Drivers provide EcoStitch control utilizing existing PLC recipes.

VD2 Panel Mount

VD2 External Mount
TECH SPECS

TECHNICAL SPECIFICATIONS

EcoStitch™ Characteristics

Valve Width22 mm (0.860 in)
Valve Height155 mm (6.10 in)
Mounting12.70 mm (0.500 in) round bar
Fluid Pressure70 bar (1000 psi)
Life Cycle2 billion cycles*
Max Cycle Rate15,000 cycle/min for short durations
Performance2 msec dispense, 2 msec gap

* Depending on operating conditions

FEATURES

The "quick-connect" coil allows for easy change-outs between valve configurations. All the connections to melt units are 100% compatible with existing hot melt equipment.

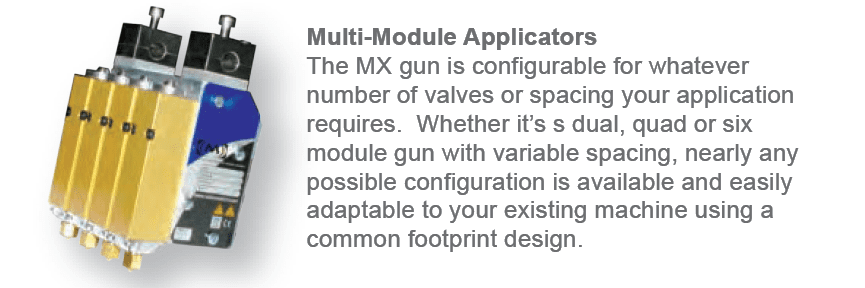

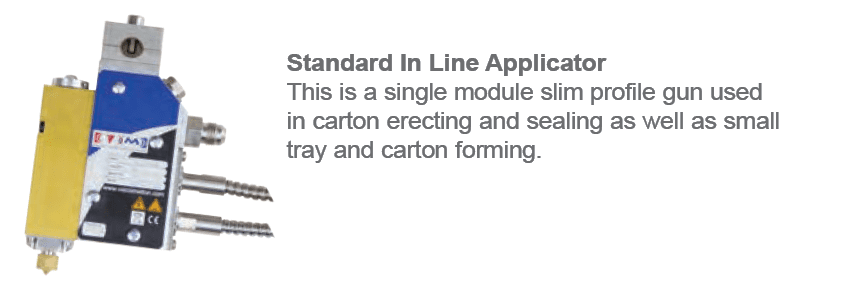

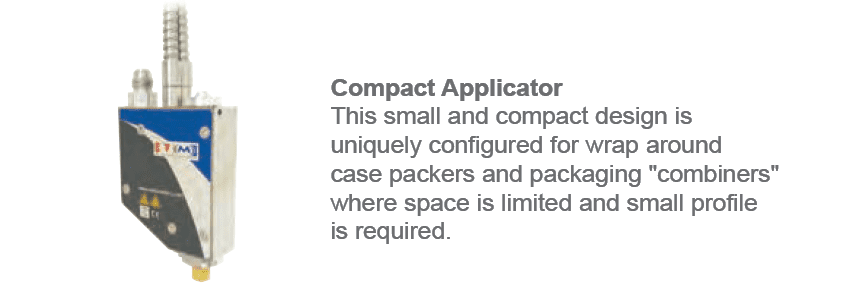

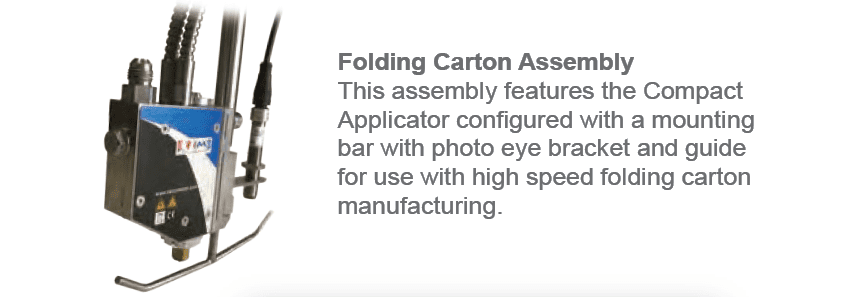

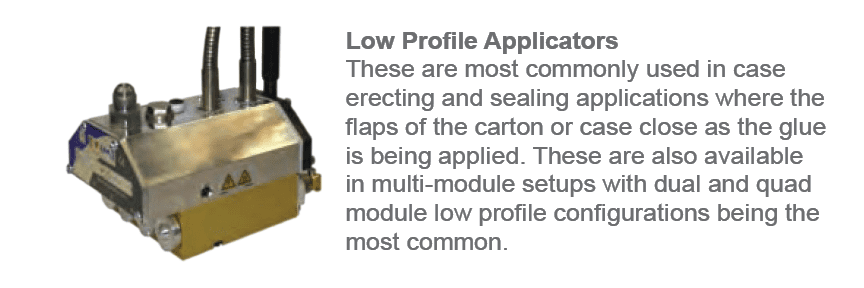

The MX Slot Coat module is ideal for narrow web coating and intermittent slot coat application. This MX valve can work with any of the standard and Multi-Module Applicators.

The EcoStitch™ Applicator comes standard with an integrated filter in the manifold.

The MX Sift Proof module is ideal for sift proof applications in food packaging applications with granular material as well as in book binding for hard back spine gluing. The blade sets can be configured for up to 6 mini lines per module and is compatible with both the Standard and Multi-Module Applicators.

CONTACT US

​KUBE SYSTEM

BETTER BONDS, LESS ADHESIVE & WHY THIS WORKS!

Improve production efficiency by eliminating adhesive degradation problems with the New Kube, an enclosed system with integrated autofeeder that prevents dirt and debris from getting in the melt tank. This system features an assortment of adhesive applicator and spare part options, which are fully compatible with market standards. Multiple machine mount configurations optimize adhesive dispensing performance while using any adhesive brand, making the Kube an ideal solution for any case and carton sealing application.
  • Promotes adhesive stability and reduces char by only melting adhesive as needed
  • No more plugged nozzles. Automatic feeding keeps contaminants out
  • Multiple mount configurations make the Kube suitable for new machine installations or to retrofit existing equipment
  • Fully compatible with other industry standard hoses, guns or spare parts
  • Auto Pressure Dump feature eliminates pressure when machine is open for safer operation
KUBE SYSTEM
MOUNT CONFIGURATIONS
CONNECTIONS
DIMENSIONS
KUBE SYSTEM

BETTER BONDS, LESS ADHESIVE & WHY THIS WORKS!

MELTING CAPACITY Up to 9 kg/h
MAX HYDRAULIC PRESSURE 80 Bar
PUMPING CAPACITY 35 kg/h
MAX VISCOSITY 30.000 cps
 ELECTRICAL POWER 2460 W
 ELECTRICAL CONNECTIONS 230 I + N + T, 230 III +T, 400 III +N + T
TEMPERATURE RANGE 15° - 230°C
ESTIMATED AIR CONSUMPTION 50 - 90 L/min.
MAX CHANNEL POWER (W)1 - 2 EXITS3, 4, 5, 6 EXITS
PER EXIT (HOSE & GUN)1800 W1450 W
MOUNT CONFIGURATIONS

Engineered to operate with three different mount configurations, the Kube is suitable for both new machine installations, as well as system upgrades/ replacements.

CONNECTIONS

Fully compatible with other market standards, the Kube can run up to 6 hoses/ guns with no ties to any brand or model.

DIMENSIONS
Dimensions (mm)
PANEL
COMPACTSPLIT
 HEIGHT (mm)450580450
LENGTH (mm)770280308 +480
 DEPTH (mm)250550250
CONTACT US



LOOKING FOR A PART?

Simply provide your equipment information for a quote.
  *


 *


*Required fields
